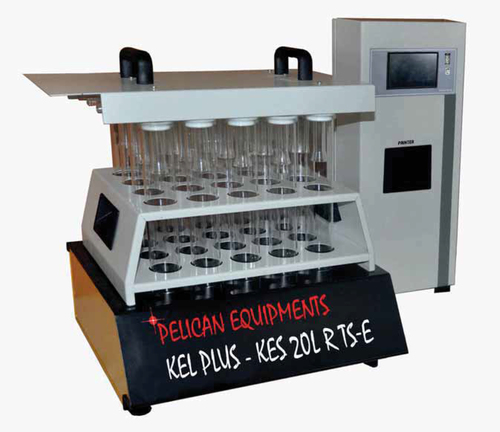

Twenty Place Digestion System Economic Touch Screen Version

Aluminium Digestion Metal Block perfectly insulated with ceramic wool ,Heaters


Casted Aluminium Alloy Block Heaters for uniform heating and even digestion of samples,Power : 4800 W

"MICROPROCESSOR BASED TEMPERATURE CONTROLLER: Temperature Controller: Fuzzy logic MicroProcessor based PID Controller, Temperature controller is isolated separatelyin a control tower to protect electronics from digestion heat zone and acidreaction zone, Superior PC compatible Auto Sequencing features, Microprocessor controls integrated programming of temperature and time, Selectable Programs(Customizable): Integrated Auto Sequencing Features with 70 intelligent memory programs, 12 desirable sequence ramp / steps of time and temp. domainfor each programme, 840 Intelligent memory segments, Temperature Control Range:Ambient to 450 C,


Temperature Indication: Touch Screen Display

Temperature Accuracy / Precision : + 0.5 C,

Temperature Setting: Touch Panel, AutoTuning facility of Temperature Controller,

PORTS: Two direct ports on mother board, One Direct USB port to connect PC for 2 way communication , Second port to connect unique wireless mousedirectly without connecting to PC/Data Logger/ Connect Memory stick to copy storedand logged data, Memory stick for data storage with separate port in motherboard.

ADVANCEDFEATURES OF GRAPHICAL TOUCH SCREEN VERSION:


Display : 4.3 bright digital TFTGraphic touch screen LCD Display, Icons to represent output of heating processin touch Screen display, Inbuilt mini printer for print options to documentpreprogrammed settings, Live Schematic Graphical Process flow feature of eachstep in progress with facility to have print options., 480 x 272 QVGAResolution, RGB 65,000 true to life colours, TFT Screen Capacitive Touch (most sensitive;best used with finger touch), Supports all available windows, fonts andcharacters, Display Resolution : 0.1, Display status : SV, PV, Program No. StepNo., & timer


Alarm output : 3 alarmoutputs with buzzer indication, additional relay, Upgradable Unique wirelessmouse to operate touch screen directly without PC at a distance of 1-2 mtrsfrom equipment. This protects the touchscreen from damage / scratches due to nails in fingers, Remote Control Module for wireless datamonitoring, control and transfer to PCat a distance of 5-10 feet from equipment, The user can view all the programmethat is set & the current status of programme in process from his work tableon his laptop or PC at a distance of 5-10 feet and can also control or alter settings, The entire display screen wirelessly appears in the users PC.

ADVANCEDPC CHART SOFTWARE FOR PC COMPATIBILITY

Unique Inbuilt software program suitable for micro nutrient, macro nutrient, traceelement, diacid & triacid analysis

UPGRADEABLEDATA LOGGER MODULE,

BUILTIN FULLY AUTOMATIC SAFETY SYSTEM FORUSER PROTECTION WITH AUTO ERROR DIAGNOSIS

Power failure mode : Holds previousprogrammed setting in memory and on power resumption starts from last set value

AUTOFIX EXHAUST MANIFOLD SYSTEM

OTHER STANDARD FEATURES, Thermocheck slot for using external thermometer
