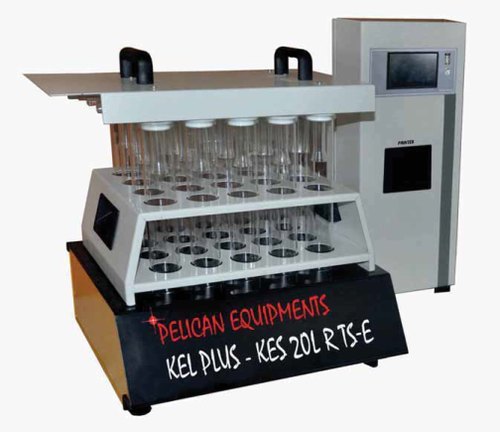

Twenty Place Touch Screen System Economic

Twenty Place Touch Screen System Economic

Product Details:


Product Description

Model KES 20L R TS (E) : KEL PLUS Microprocessor Based  Twenty Place Graphical Macro  Block , Autosequencing Automatic PC Compatible Digestion System, TFT Touch Screen LCD Display(Economic Series), Aluminium Digestion Metal Block perfectly insulated with ceramic wool, Casted Aluminium Alloy Block Heaters for uniform heating and even digestio,

"MICROPROCESSOR BASED TEMPERATURE CONTROLLER":  Integrated Auto Sequencing Features with 70 intelligent memory programs, 12 desirable sequence ramp / steps of time and temp.Temperature Control Range: Room temperature to 450 ï‚° C,Temperature Accuracy / Precision :+  0.5° C, Auto Tuning facility of Temperature Controller,  Thermocheck slot for using external thermometerADVANCED FEATURES OF GRAPHICAL TOUCH SCREEN VERSION:4.3bright digital TFT Graphic touch screen LCD Display, Icons to represent output of heating process in touch Screen display, Live Schematic Graphical Process flow feature of each step in progress, Display status : SV, PV, Program No. Step No.,  & timer, Unique wireless mouse to operate touch screen directly without PC at a distance of 1-2 mtrs, One Direct USB port to connect PC for 2 way communication, Second  port to connect unique wireless mouse directly without connecting to PC,  Remote Control Module for wireless data monitoring, control and transfer  to PC(Upgradable), Advanced PC Chart Software For PC CompatibilityBUILT IN FULLY AUTOMATIC  SAFETY SYSTEM FOR USER PROTECTION:Safety Design For Longitivity Of Operation,  CE Certified which is a mark of quality and safety statutory requirement to fulfill Good Laboratory,  Auto Over temperature protectionAuto Error Indication & Diagnosis, Auto  Circuit Break Protection on over voltage, Over heating protection and auto  Heater switch off feature with alarm, Acoustic signals with visual display, Holds previous programmed setting in memory and on power resumption starts from last set value,  Wireless mouse to operate touch screen directly without PC protects the touch screen from damage / scratches due to nails in fingers for longitivity of operation, Auto acoustic signal (alarm) on completion of digestion,  Auto power off mode on completion of digestion, Temperature controller is isolated separately in a control tower to protect electronics from digestion heat zone and acid reaction zone, Suction Assembly wall mounted on rear side of unit for safe & easy access to drain area


 Viton fume hose for diacid and triacid digestion System (3 mtrs), Digestion Time : 30 to 60 minutes depending upon type of sample,   Marked Borosilicate straight Macro digestion tubes, Total volume (300 ml) working volume (250 ml), Dimension: 300 X 42mm,  Stainless Steel Insert Rack (Tube Stand)  to hold digestion tubes,  Cooling Stand (Support Rack) to keep the insert rack after digestion, Auto Fix Exhaust Manifold System,  Exhaust  glass Manifold System with Teflon adoptors fitted on to a anticorrosive stainless steel rack,  Easy Auto Fix Spring Clamps to fix the manifold, KEL Flow Assembly with Giant Filter suction pumps (2 Nos.) for safe removal of acid fumes,  Suction Assembly wall mounted on rear side of unit for safe & easy access to drain area
